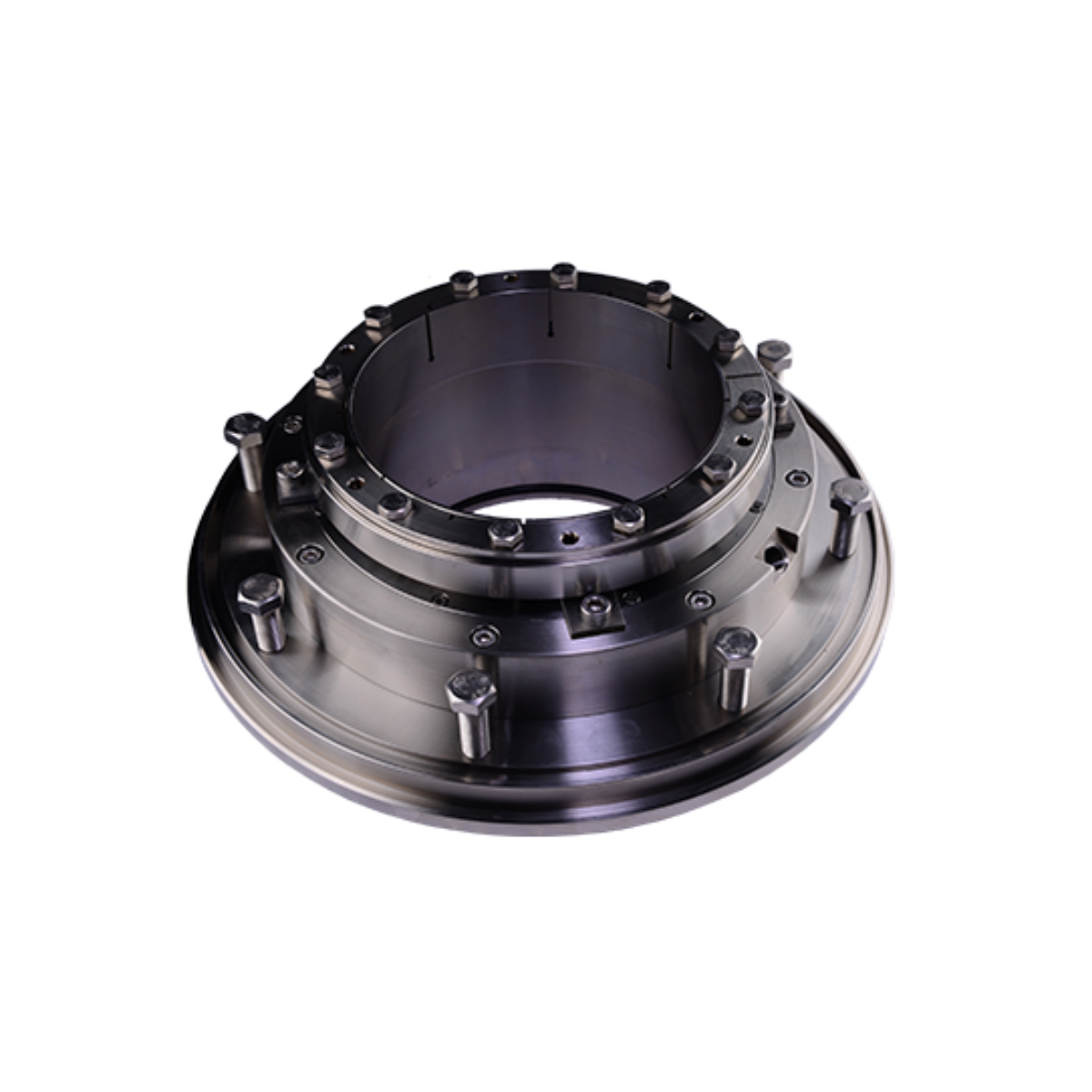

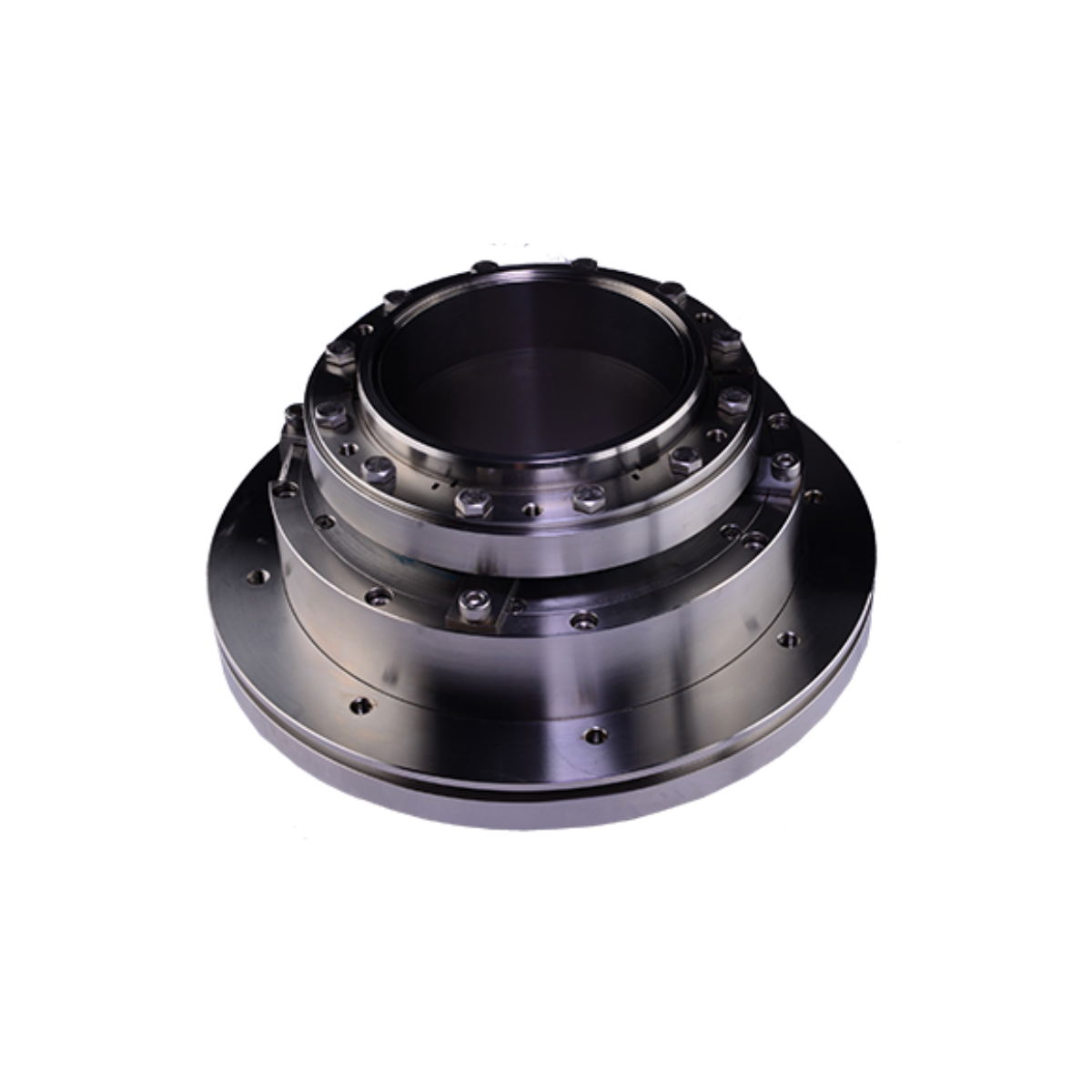

BPI-HR2H-Compact Disk Drive Single-face Containerized Mechanical Seal
BPI-HR2H-Compact Disk Drive Single-face Containerized Mechanical Seal
7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.
Couldn't load pickup availability
Applicable Range:
Media: Gypsum slurry, cement slurry, sewage, etc.;
Concentration: ≤40%;
Pressure: <1.5MPa;
Temperature: <120°C;
Linear speed <10m/s;
Structural Features:
This structure adopts internal flushing, single-face, containerized, and compact disk drive.
The sealing water is prevented from entering the pump and is transported through the impeller together with the medium.
The friction pair of the mechanical seal adopts hard-to-hard materials with excellent wear resistance.
For specific material selection, please consult Beta Prime Industry
.
Instructions for Use:
During installation, lubricating oil should be applied to the inner hole of the sleeve and the O-ring to facilitate installation.
After confirming that the mechanical seal is installed correctly, the hexagonal cylindrical head screws and positioning blocks must be removed before starting.
Special note: The sealing water pressure should be higher than the pressure inside the pump cavity by about 0.1-0.2MPa. When operating, the shaft seal water should be opened for 5 minutes before starting the machine. When shutting down, the machine should be stopped first, and then the sealing water should be turned off.
View full details
Media: Gypsum slurry, cement slurry, sewage, etc.;
Concentration: ≤40%;
Pressure: <1.5MPa;
Temperature: <120°C;
Linear speed <10m/s;
Structural Features:
This structure adopts internal flushing, single-face, containerized, and compact disk drive.
The sealing water is prevented from entering the pump and is transported through the impeller together with the medium.
The friction pair of the mechanical seal adopts hard-to-hard materials with excellent wear resistance.
For specific material selection, please consult Beta Prime Industry
.
Instructions for Use:
During installation, lubricating oil should be applied to the inner hole of the sleeve and the O-ring to facilitate installation.
After confirming that the mechanical seal is installed correctly, the hexagonal cylindrical head screws and positioning blocks must be removed before starting.
Special note: The sealing water pressure should be higher than the pressure inside the pump cavity by about 0.1-0.2MPa. When operating, the shaft seal water should be opened for 5 minutes before starting the machine. When shutting down, the machine should be stopped first, and then the sealing water should be turned off.
