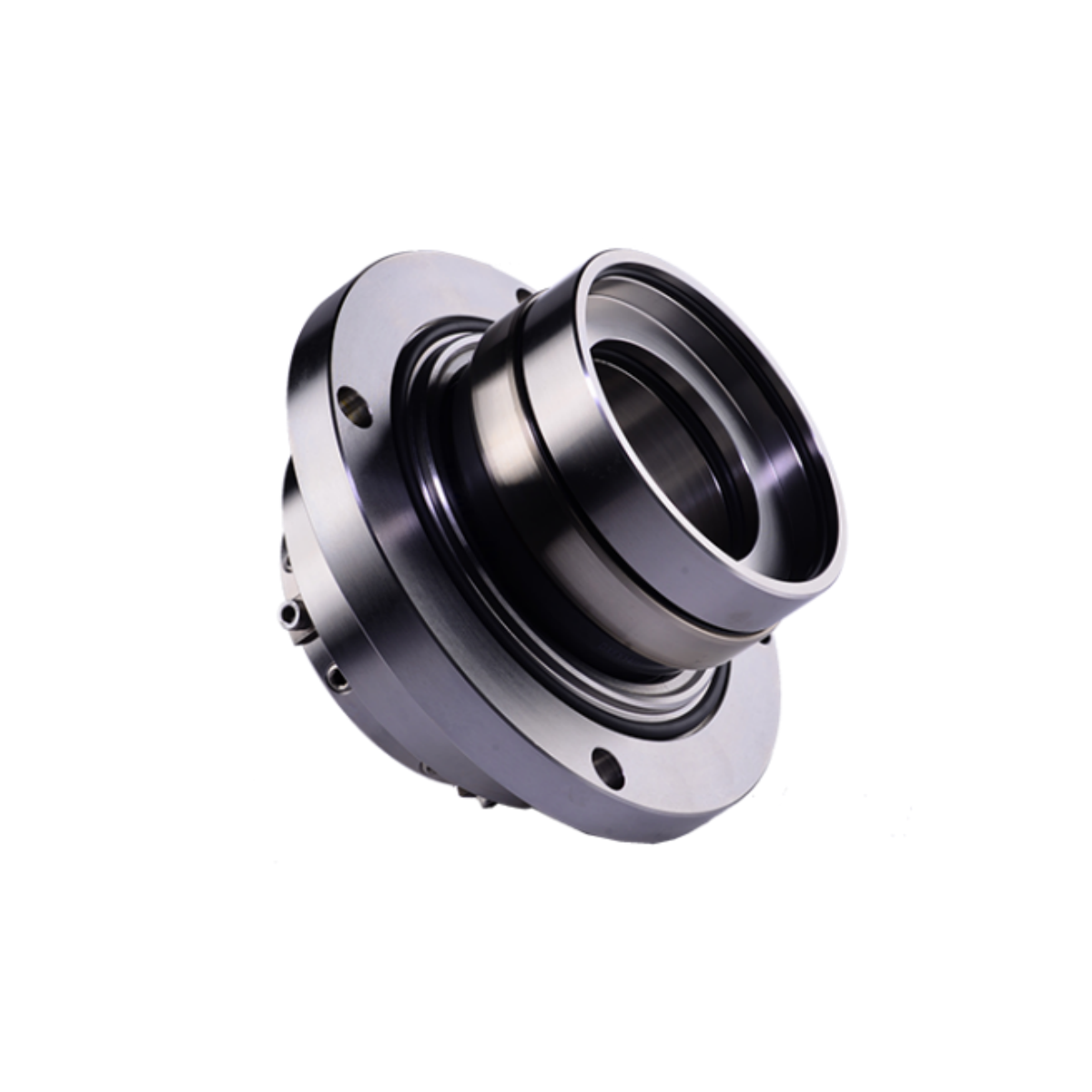

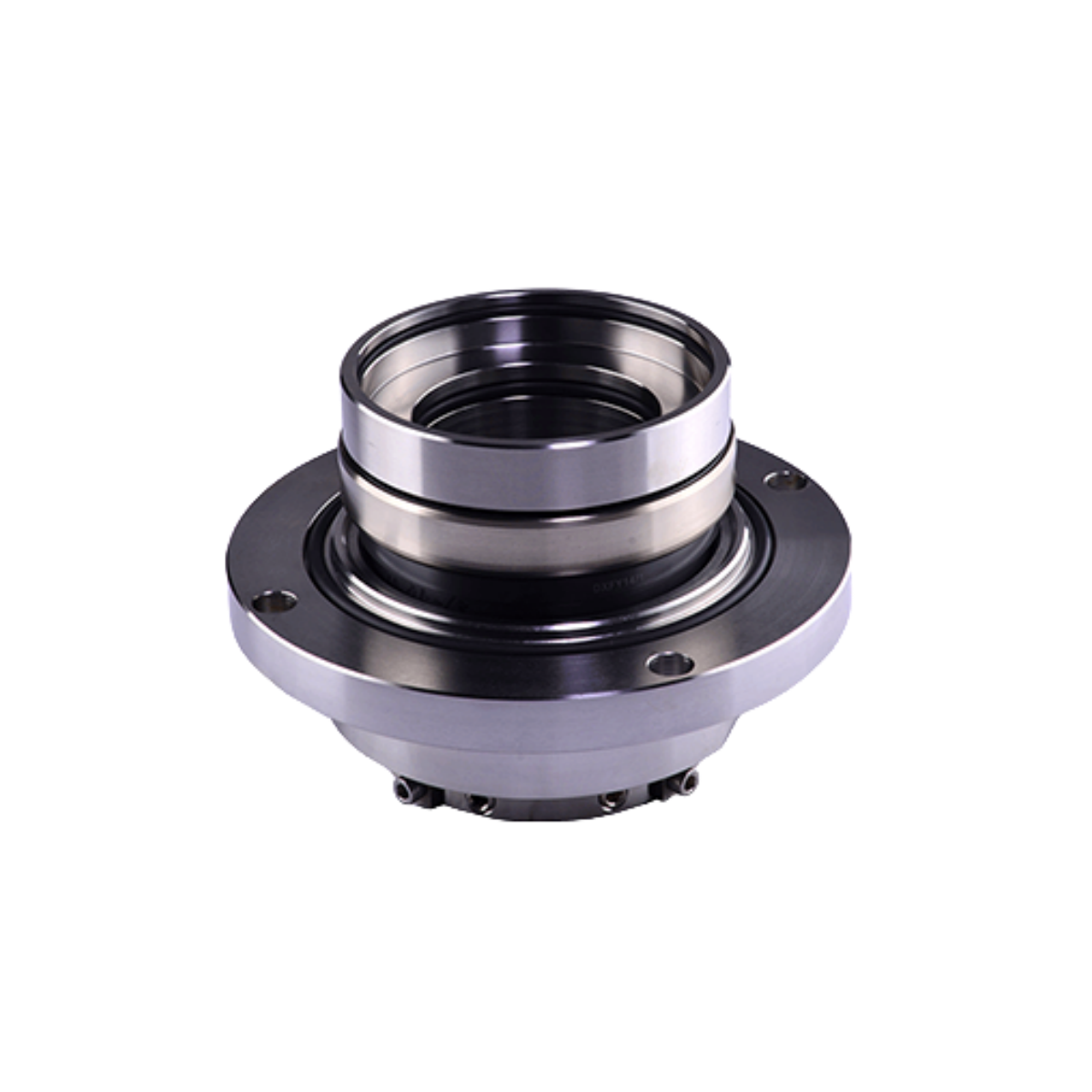

BPI-HRW-External Cooling Locking Screw Drive Single-End Face Containerized Mechanical Seal
BPI-HRW-External Cooling Locking Screw Drive Single-End Face Containerized Mechanical Seal
7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.
Couldn't load pickup availability
Application Range:
Media: Gypsum slurry, alumina slurry, cement slurry, pulp, sewage, etc.;
Concentration: <30%;
Temperature: <120°C;
Pressure: <1.5MPa;
Linear Velocity: <10m/s;
Structural Features:
The mechanical seal structure adopts external cooling, single-end face, containerized, locking disc drive, or fixed screw drive.
The friction pair of the mechanical seal adopts hard-to-hard materials, providing excellent wear resistance.
Flushing water does not enter the medium flow, and it does not affect the technological process.
For specific material selection, please consult Beta Prime Industry.
Instructions for Use:
During installation, lubricating oil (ethyl propylene rubber cannot be coated with petroleum-based lubricating oil) should be applied to the inner hole of the shaft sleeve and the O-ring to facilitate installation.
When it is confirmed that the mechanical seal is installed correctly, the hexagon socket head screws and positioning blocks must be removed before starting the machine.
External flushing water can use ordinary tap water, and the pressure should be controlled below 0.05 MPa. It should achieve normal flow, and its function is to cool down and carry away potential leaks. It is preferable for the water to enter from the top and exit from the bottom.
