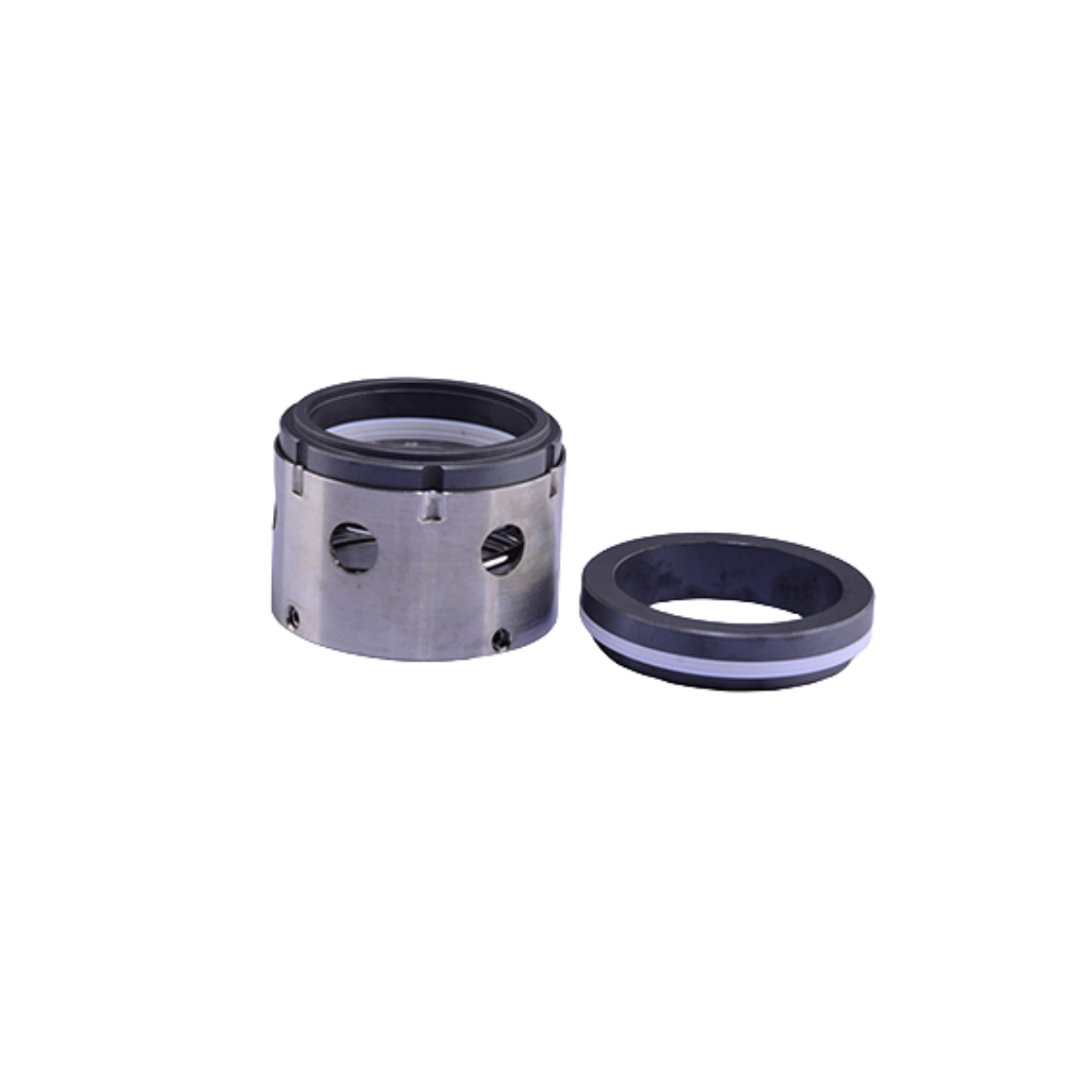

BPI-M2-Sleeve Drive Single Spring Unbalanced Universal Mechanical Seal
BPI-M2-Sleeve Drive Single Spring Unbalanced Universal Mechanical Seal
7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.
Couldn't load pickup availability
Scope of Application:
Media: Oil, water, crystalline acids, alkalis, salts, organic solvents, etc.
Temperature: -20-220 °C
Pressure: <1MPa
Linear Speed: <10m/s
Shaft Diameter: Φ18- Φ120mm
Viscosity: ≤1200CP
Structural Features:
View full details
Media: Oil, water, crystalline acids, alkalis, salts, organic solvents, etc.
Temperature: -20-220 °C
Pressure: <1MPa
Linear Speed: <10m/s
Shaft Diameter: Φ18- Φ120mm
Viscosity: ≤1200CP
Structural Features:
- Single spring, sleeve drive, strong anti-clogging ability. It is not related to the rotation direction during use. The spring seat, spring, and thrust ring can be pre-assembled as a whole for convenient installation.
- Depending on different situations, auxiliary sealing rings such as rubber O-rings, PTFE V-rings, or PTFE wedge rings can be selected.
- Compliant with IS03069, DIN24960, and GB6556 standards, showing strong versatility.
- Can form a single or mutual double-end face seal.
