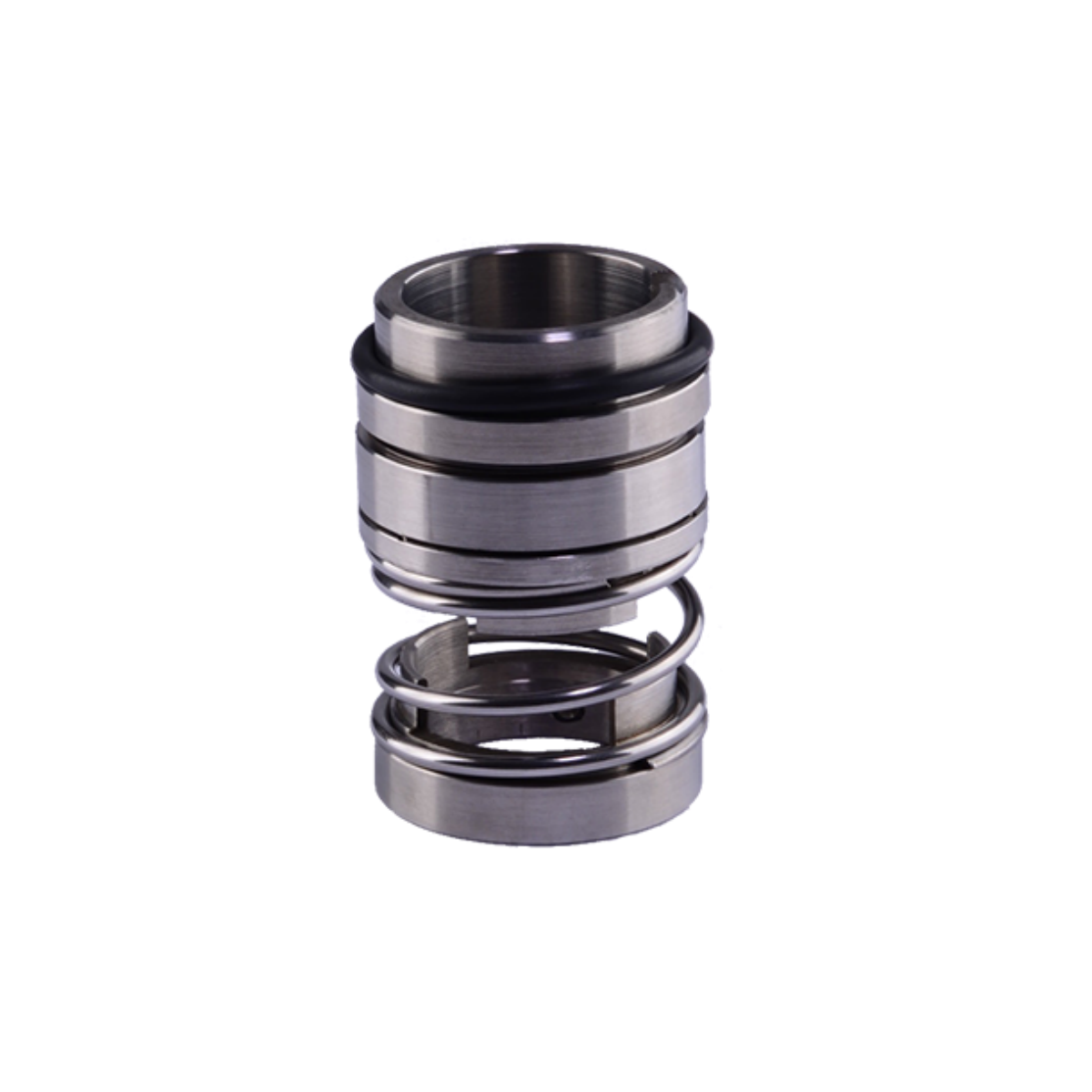

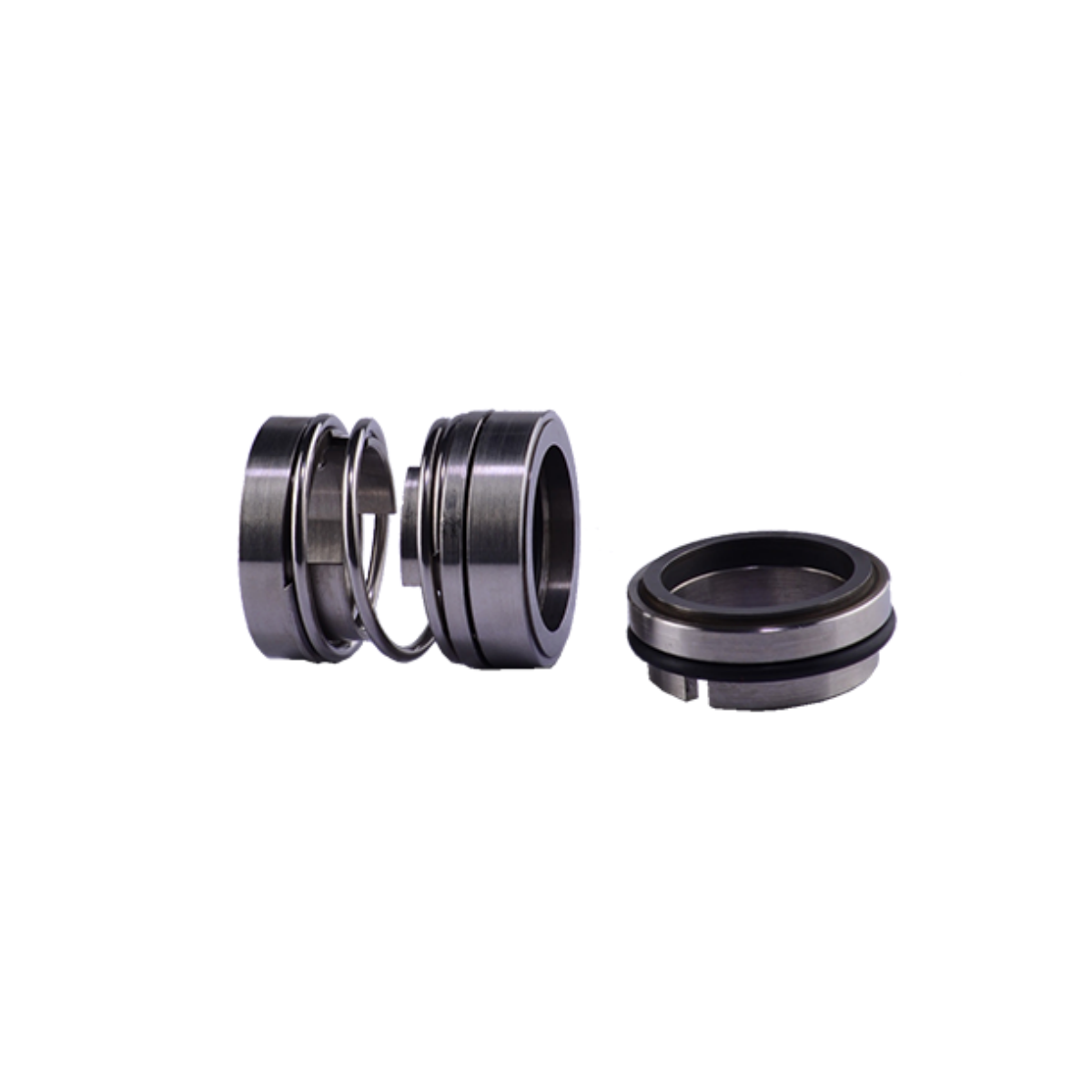

BPI-M4-Single Spring and Fork Transmission Mechanical Seal

Scope of application:

Medium: Oil, water, crystalline acid, alkali, salt, high-viscosity fluid, slurry, etc.;
Temperature: -20~220°C;
Pressure: <1MPa;
Linear speed: <10m/s;
Shaft diameter: Φ18-Φ120mm;
Viscosity: ≤150000CP;

Structural features:

1. Single spring, fork transmission, strong anti-blocking ability. It is not affected by the direction of rotation during use.
2. Depending on the situation, auxiliary sealing rings such as rubber O-rings, PTFE V-rings, or PTFE wedge rings can be selected.
3. Complies with IS03069, DIN24960, and GB6556 standards, with strong versatility.
4. Can form a double-end face seal on its own or in combination with each other.
