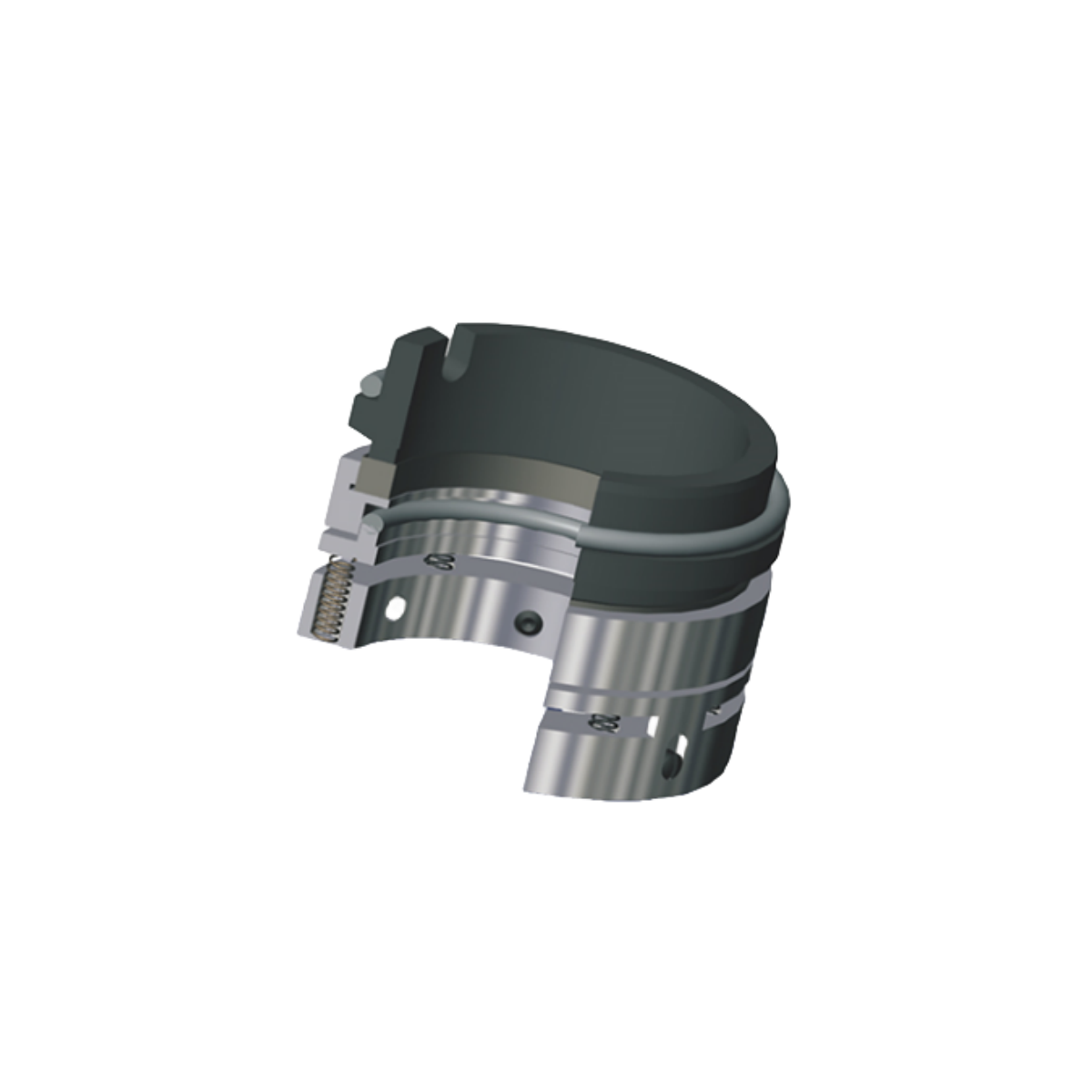

BPI-M5-Mechanical Seal

Scope of Application:

Media: Oil, water, non-crystalline acid, alkali, salt, organic solvents, etc.;
Temperature: -20~220 °C;
Pressure: <1MPa;
Linear Speed: <10m/s;
Shaft Diameter: Φ18-Φ200mm;
Viscosity: ≤300CP;

Structural Features:

1. Multi-spring, fork groove drive, with evenly compressed sealing faces. It is not affected by the rotation direction during use. The spring seat, spring, and thrust ring can be pre-assembled as a whole for convenient installation.
2. Depending on the situation, auxiliary sealing rings can be selected from rubber O-rings, PTFE V-rings, or PTFE wedge rings.
3. Complies with ISO3069, DIN24960, and GB6556 standards, with strong versatility.
4. Can form a single or mutual double end-face seal.
