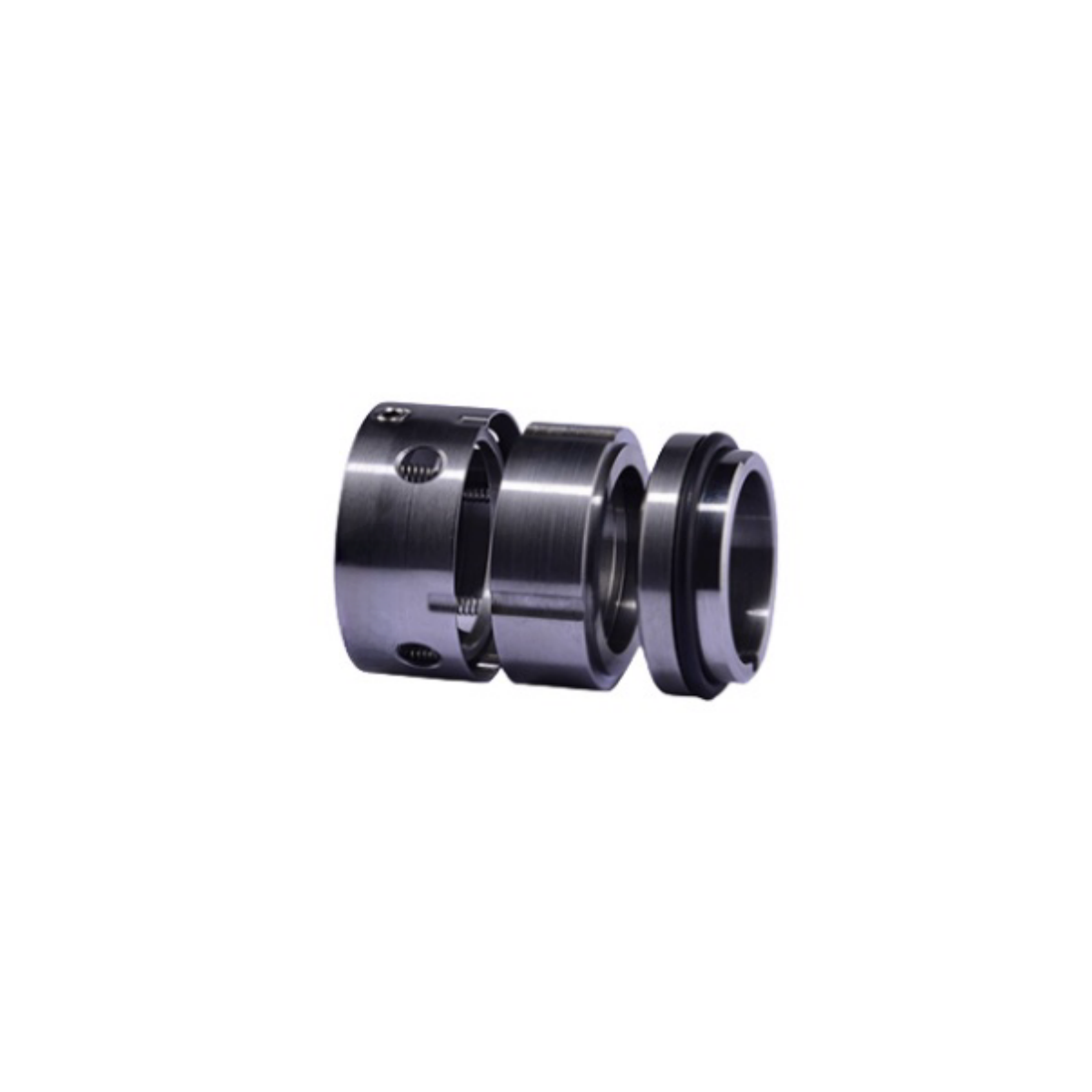

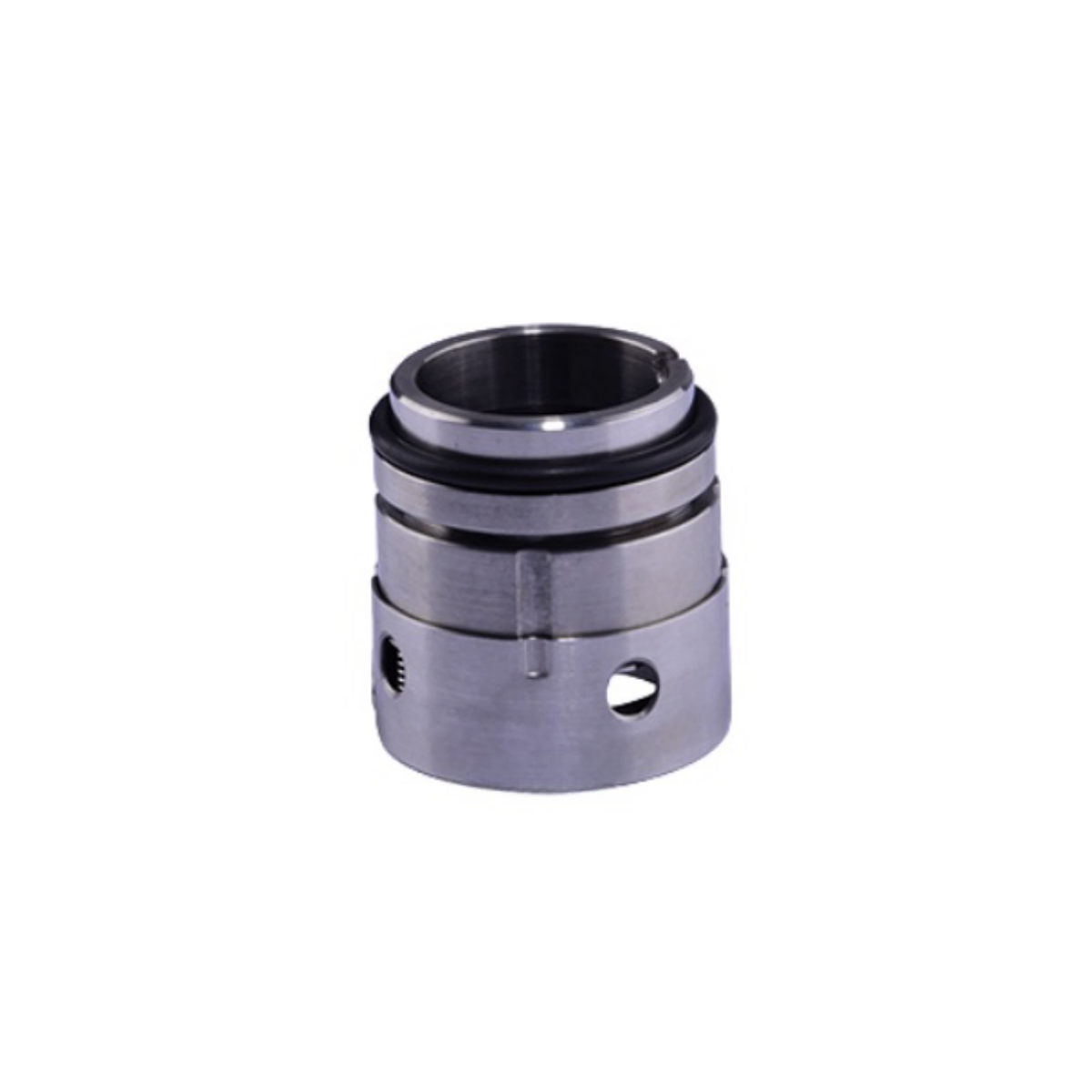

BPI-MB1-Sleeve Drive Multiple-Spring Balanced Type Universal Mechanical Seal

BPI-MB1-Sleeve Drive Multiple-Spring Balanced Type Universal Mechanical Seal

7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200

Model
$100.00 USD
$100.00 USD
Sale Sold out
Shipping calculated at checkout.

TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.

Application Range:

  • Media: Oil, water, non-crystalline acids, alkalis, salts, organic solvents, etc.;
  • Temperature: -20~220°C;
  • Pressure: ≤4 MPa;
  • Linear Speed: <10m/s;
  • Shaft Diameter: Φ14-Φ200mm;
  • Viscosity: ≤300cP;

Structural Features:

  • Multiple springs, sleeve drive, and even pressure on the sealing face. It is independent of the rotation direction during use. The spring seat, spring, and thrust ring can be pre-assembled for easy installation.
  • Depending on the situation, the auxiliary sealing ring can use rubber O-rings, fluorine V-rings, or PTFE wedge rings.
  • Complies with ISO3069, DIN24960, and GB6556 standards, ensuring strong universality.
  • Can form a single-face or double-face seal individually or in combination.
