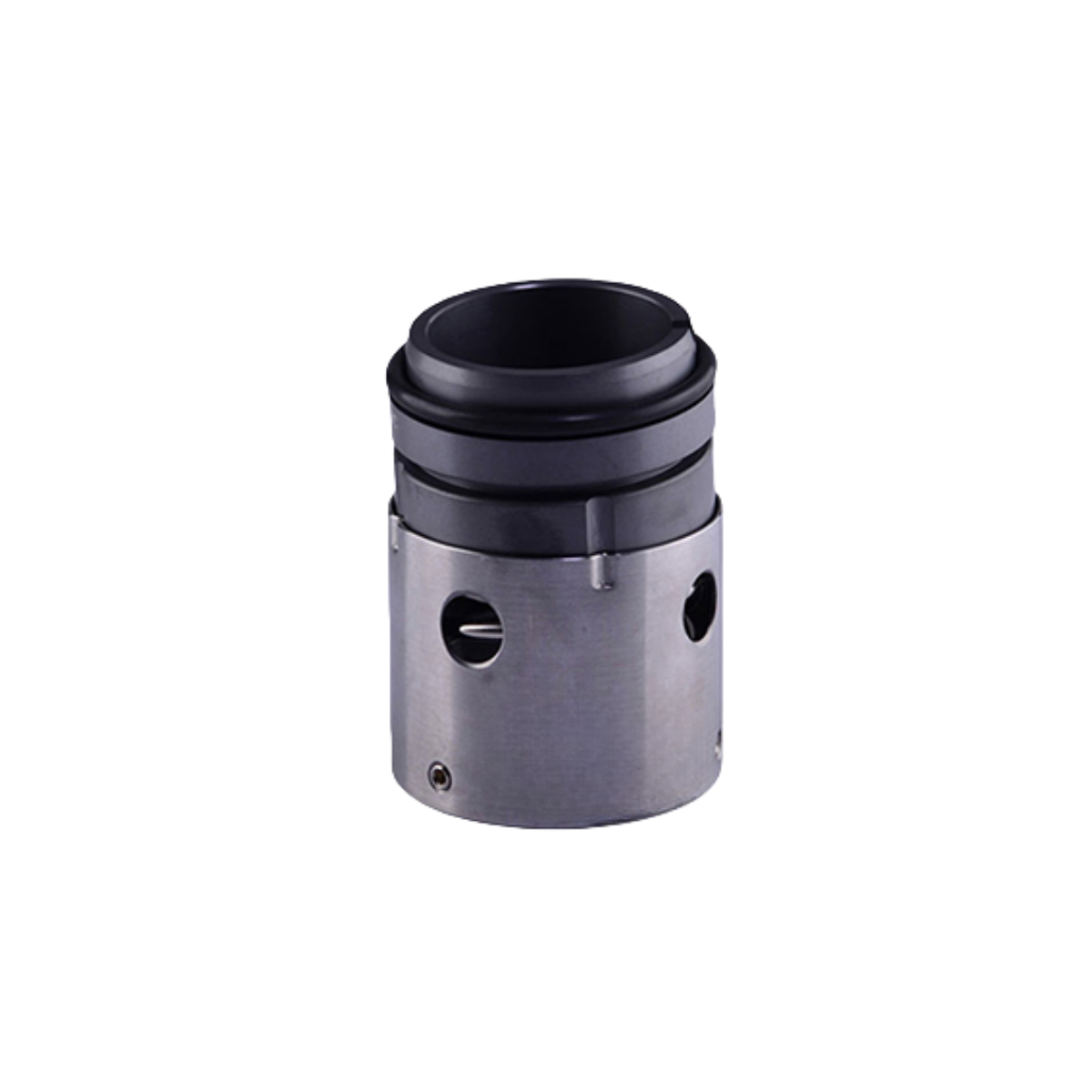

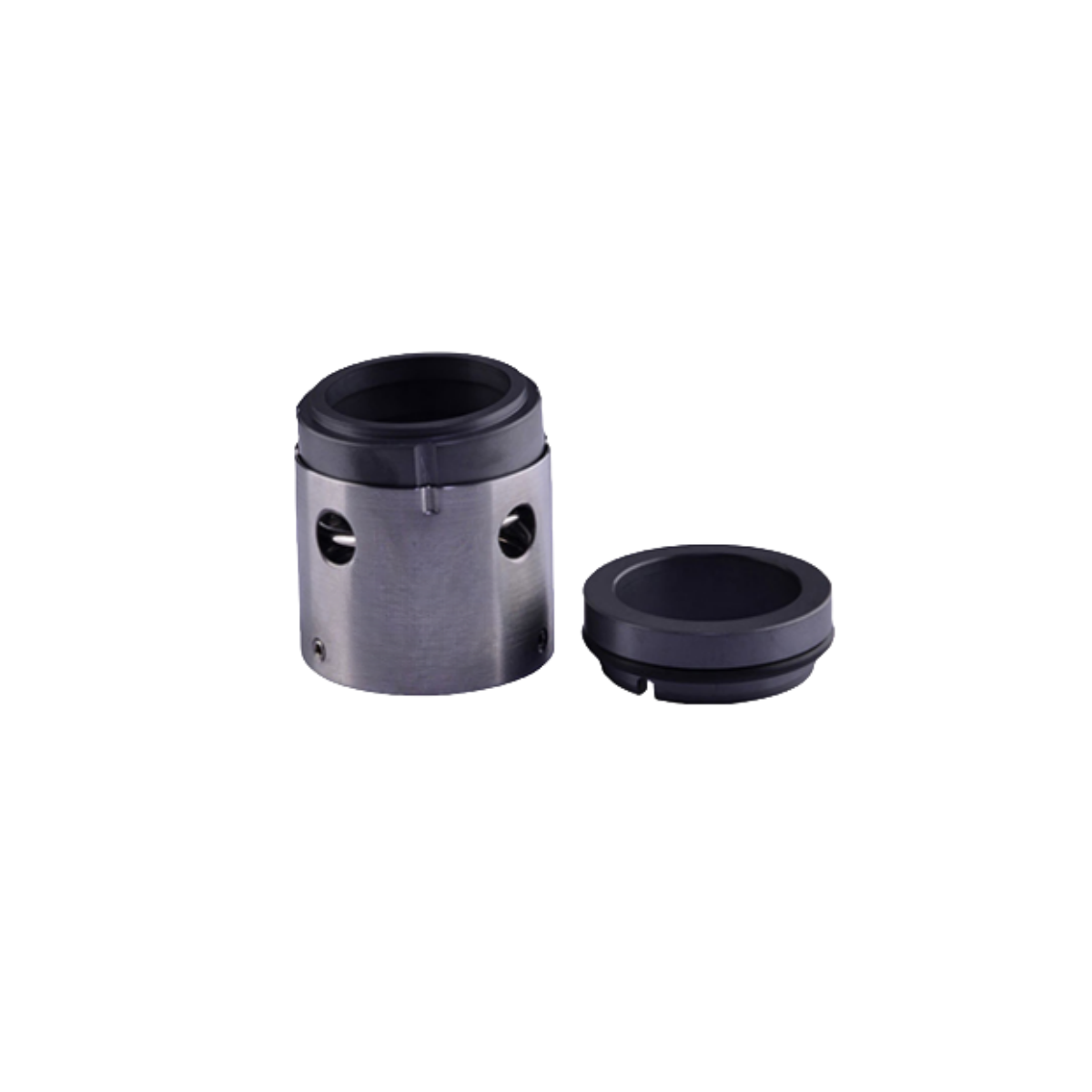

BPI-MB2-Single-Spring Balanced Type Mechanical Seal with Sleeve Drive
BPI-MB2-Single-Spring Balanced Type Mechanical Seal with Sleeve Drive
7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.
Couldn't load pickup availability
Application Range:
Media: Oil, water, crystalline acids, alkalis, salts, organic solvents, etc.
Temperature: -20~220°C;
Pressure: <4 MPa;
Linear Speed: <10m/s;
Shaft Diameter: Φ14- Φ120mm;
Viscosity: ≤1200CP.
View full details
Media: Oil, water, crystalline acids, alkalis, salts, organic solvents, etc.
Temperature: -20~220°C;
Pressure: <4 MPa;
Linear Speed: <10m/s;
Shaft Diameter: Φ14- Φ120mm;
Viscosity: ≤1200CP.
Structural Features:
- Single spring, sleeve drive, strong anti-blocking capability. Orientation-independent during use. The spring seat, spring, and thrust ring can be pre-assembled as a unit for convenient installation.
- Depending on the specific situation, the auxiliary sealing ring can be selected from rubber O-rings, PTFE V-rings, or PTFE wedge-shaped rings.
- Complies with standards IS03069, DIN24960, and GB6556, exhibiting strong versatility.
- Can form a single or double end-face seal either independently or in combination.
