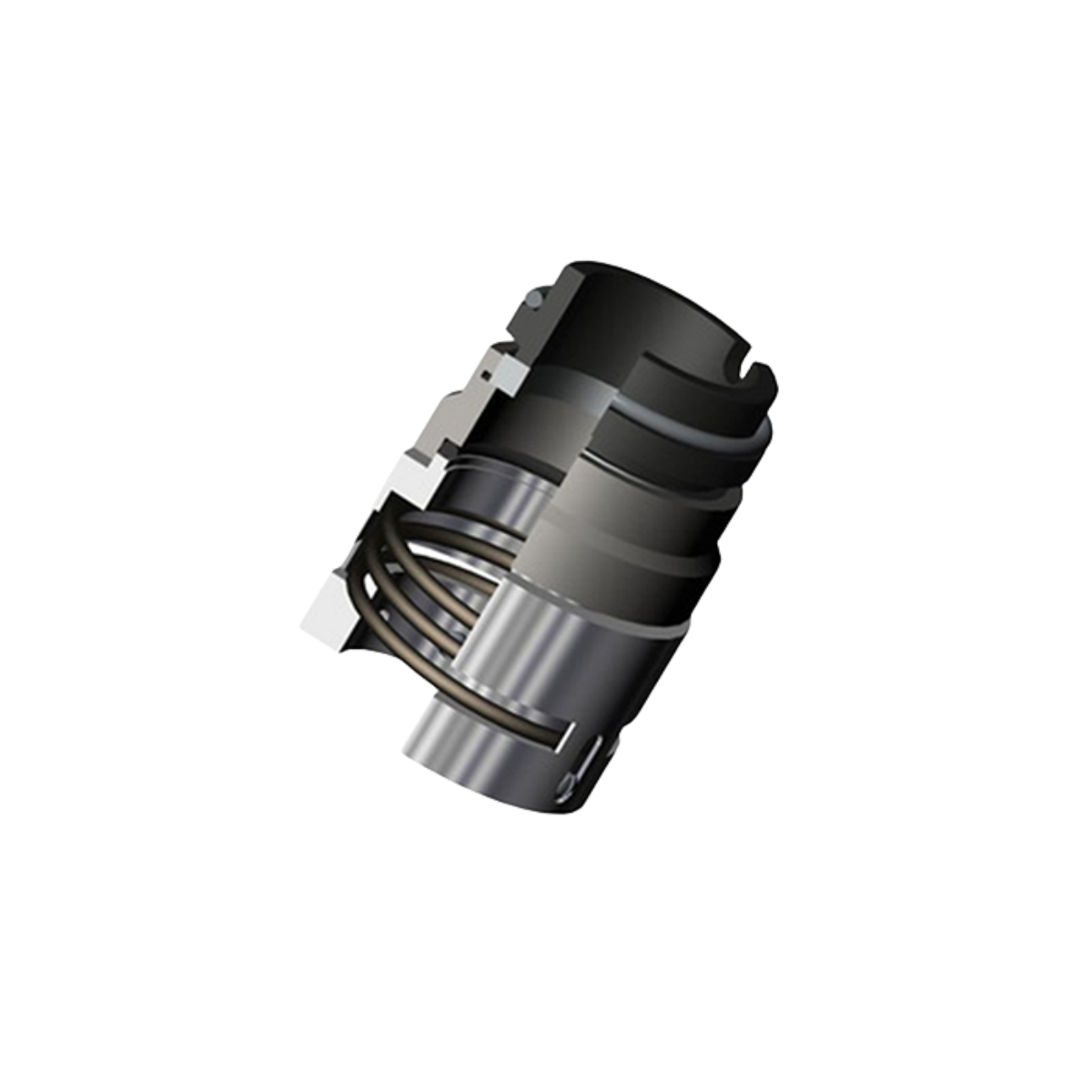

BPI-MB3-Single Spring, Groove Drive

Scope of Application:

• Media: Oil, water, crystalline acid, alkali, salt, high-viscosity fluids, etc.
• Temperature: -20~220°C
• Pressure: <4MPa
• Linear speed: <10m/s
• Shaft diameter: Φ14-Φ120mm
• Viscosity: ≤1200CP

Structural Features:

1. Single spring, groove drive, strong anti-blocking capability. It is not affected by the rotation direction during use. The spring seat, spring, and thrust ring can be pre-assembled as a whole for convenient installation.
2. Depending on the situation, auxiliary sealing rings such as rubber O-rings, polytetrafluoroethylene V-rings, or polytetrafluoroethylene wedge rings can be chosen.
3. Complies with ISO3069, DIN24960, and GB6556 standards, with strong versatility.
4. Can form single or mutual end-face seals.
