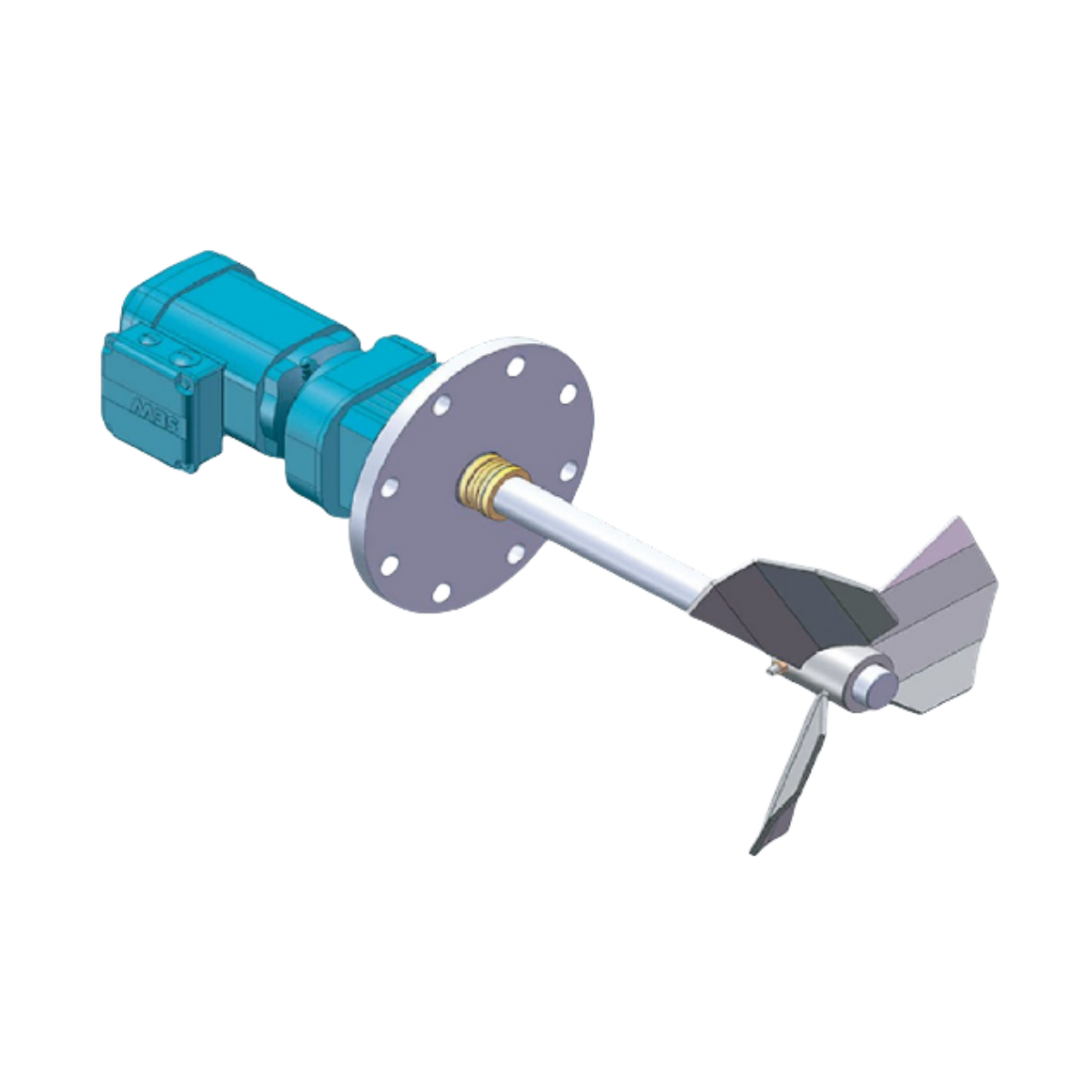

Conventional Side Entry Mixer

Features:

• Mixer installed on the side of the tank
• Meets various mixing needs
• Commonly used for storage and blending of oils, milk, and red wine
• Easy to disassemble and assemble
• EU CE certification and food-grade certification

Advantages:

• Protects the sensory qualities and integrity of the product
• Compliance with hygiene standards
• Facilitates tank cleaning and maintenance
• Utilizes FDA food-grade standard mechanical seals
• Applicable explosion-proof range: Zone explosion-proof level, 0,1,2 inside the tank, 1,2 outside the tank
• Suitable for large-volume tanks such as wine and milk, suitable for tanks ranging from 10m³ to 270m³

Optional specifications (all models include):

• Installation bottom cover with leak detection groove made of stainless steel 316L material
• PTFE material installation bottom cover gasket
• Stainless steel 316L material installation bottom cover bolts and nuts
• Stainless steel 316L material shaft and impeller, welded and polished with roughness Ra <0.8um
• Threaded coupling with sealed connection, allowing installation and adjustment without disassembling the mechanical seal
• FDA-certified medium self-lubricating single-end mechanical seal
