Magnetic Fluid Seal

Magnetic Fluid Seal

7*24 Online!
sale@betaprimeindustry.com
WA:+86189 8077 6200

Model
$500.00 USD
$500.00 USD
Sale Sold out
Shipping calculated at checkout.

TT, Paypal, LC Payment Acceptable.
Contact us to get discounts.

Beta Prime Industry's independently developed innovative Magnetic Fluid Seal technology, compared to traditional seals, offers unique advantages such as zero leakage, long lifespan, high reliability, zero pollution, maintenance-free, no wear, compact sealing space, no need for auxiliary systems, and both dynamic and static sealing.

Our magnetic fluid seal technology revolutionizes the traditional sealing industry, addressing issues like the short lifespan of traditional mechanical seals, the inability to achieve zero leakage, and the high cost of imported sealing components. Our magnetic fluid seal equipment can be applied in high-end sealing applications such as chemical mixing, horizontal dryers, and high-energy material mixing, achieving domestic substitution in the high-end seal product field.

We have main models for you as follows:

  • BPI-MFS-1X Model: Mainly used for sealing gas and liquid in vertical conditions such as agitators and vertical centrifugal pumps.

    Features:

    • No need for auxiliary systems
    • Compact sealing space
    • Zero leakage
    • No wear
    • Long lifespan
    • Maintenance-free
    • High reliability

    Operating Parameters:

    • Medium: All organic and inorganic media
    • Shaft Diameter (φ): >1mm
    • Temperature (T): -70°C to 550°C
    • Pressure (P): Vacuum to 10MPa
    • Linear Speed (V): 0 to 41m/s

  • BPI-MFS-1F-X Model: Mainly applied in horizontal gas sealing conditions like fans, compressors, and air compressors.

    Features:

    • Compact sealing space
    • Zero leakage
    • No wear
    • Long lifespan
    • Maintenance-free
    • High reliability

    Operating Parameters:

    • Medium: All organic and inorganic media
    • Shaft Diameter (φ): >1mm
    • Temperature (T): -70°C to 550°C
    • Pressure (P): Vacuum to 10MPa
    • Linear Speed (V): 0 to 41m/s

  • BPI-MFS-2X Model: Primarily suitable for agitator sealing under pressures of -0.03MPa to 0.5MPa.

    Features:

    • Small axial space occupation
    • Compact structure

    Operating Parameters:

    • Medium: All organic and inorganic media
    • Shaft Diameter (φ): >1mm
    • Temperature (T): -70°C to 550°C
    • Pressure (P): Vacuum to 10MPa
    • Linear Speed (V): 0 to 41m/s

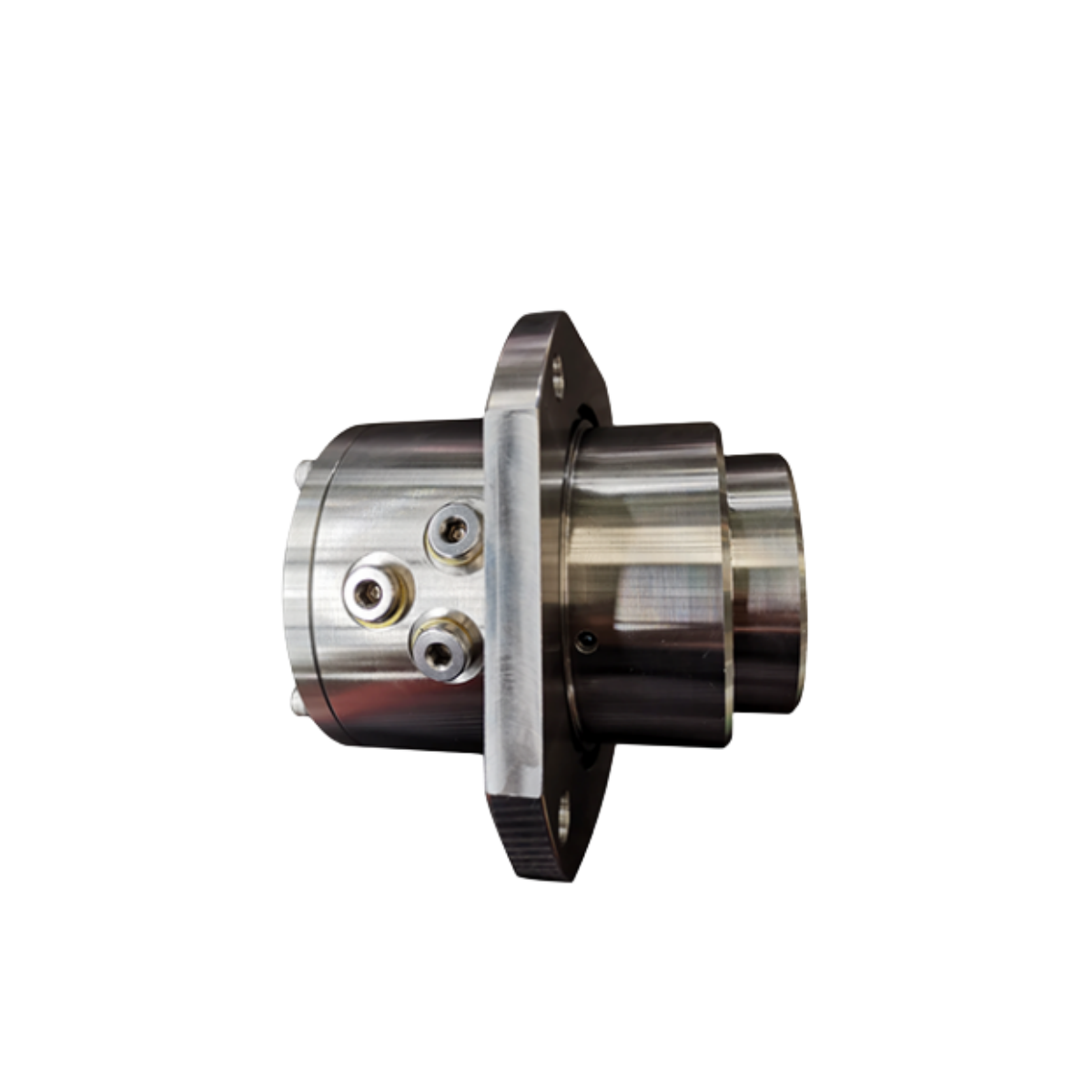

  • BPI-MFS-2W Model: Mainly used for sealing the shaft of a vacuum liquid ring pump.

    Features:

    • Zero leakage
    • No wear on the shaft
    • Long lifespan
    • High reliability

    Operating Parameters:

    • Medium: All organic and inorganic media
    • Shaft Diameter (φ): >1mm
    • Temperature (T): -70°C to 550°C
    • Pressure (P): Vacuum to 10MPa
    • Linear Speed (V): 0 to 41m/s

    • The Magnetic Fluid Seal features a tight and secure seal, an immeasurable leakage rate, extended lifespan, high reliability, pollution-free operation, the capability to withstand high speeds, optimal torque transmission, and low viscosity friction. Due to these characteristics, Magnetic Fluid Seals play an essential and irreplaceable role in various industries.

    Please feel free to inquire and make purchases; we are 24/7 online and ready to address your needs with the utmost enthusiasm!
