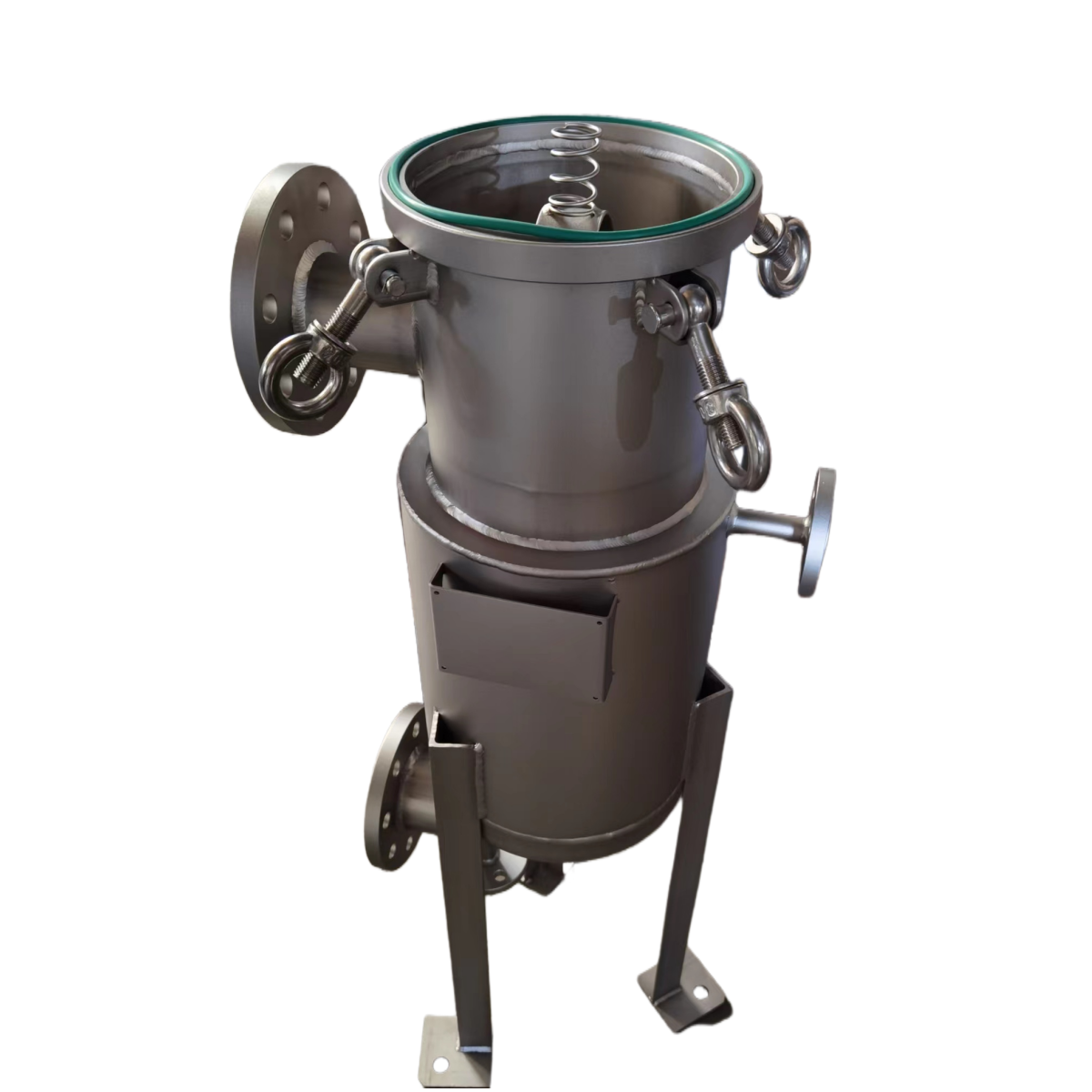

Steam Jacketed Single Bag Filter

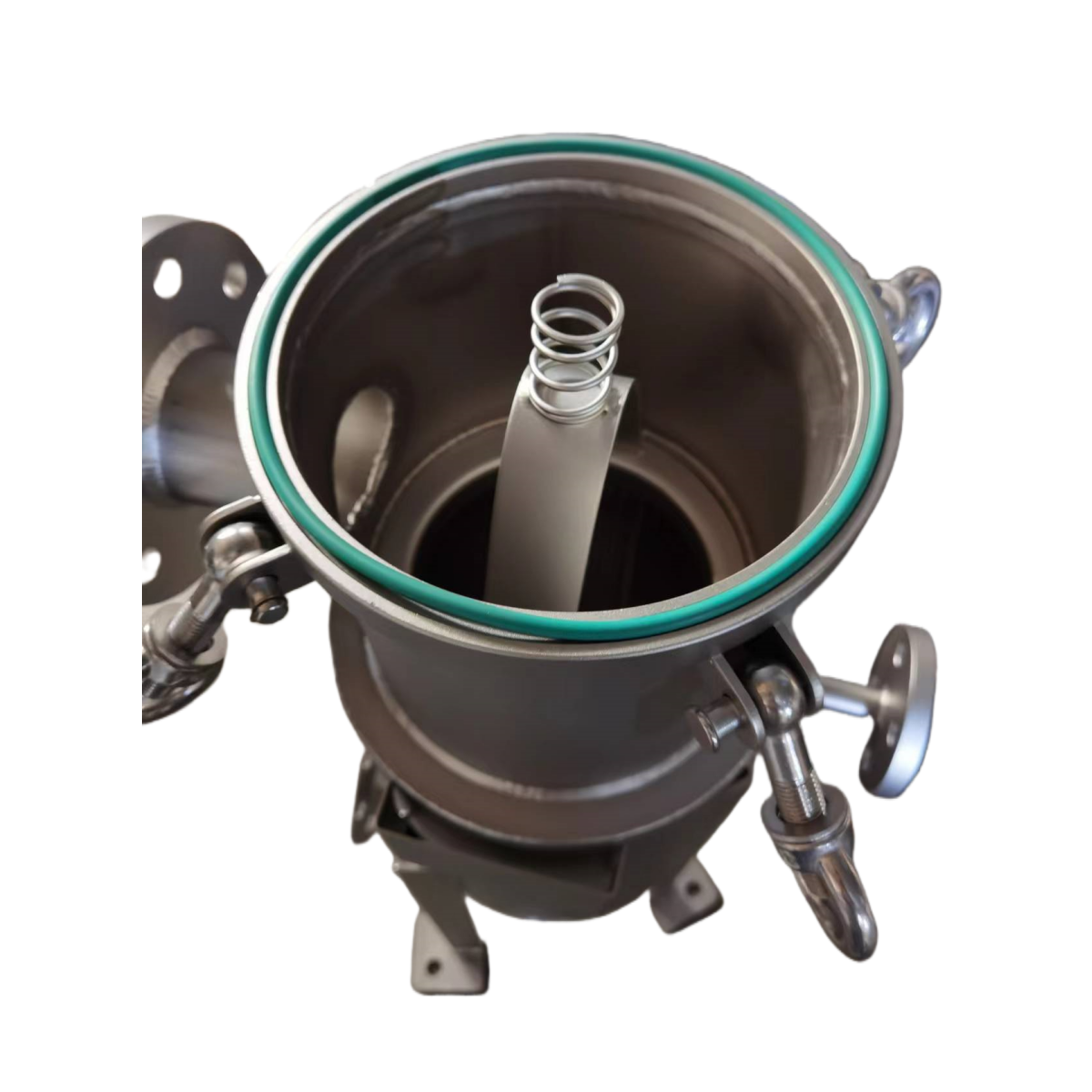

Material enters the filter body from a side near the top and exits from the bottom. Steam enters from the bottom and exits from the top. The top cover has high casting precision and directly presses the seal and filter bag.

There is also a sealing ring at the connection between the top cover and the liquid inlet, which significantly enhances the sealing capability of the bag filter, almost ensuring 100% leak-free filtration. Its design advantages and advanced manufacturing process allow it to meet stringent filtration requirements and conditions.

Purpose of the Jacket:

In conditions requiring insulation and constant temperature, choose a jacketed filter. The jacketed filter supports steam insulation, thermal liquid insulation, and insulation with thermal cotton.

Specifications:

• Design Pressure: Cylinder/Jacket: 1.0/0.3 Mpa
• Body Material: SUS304 Stainless Steel, 316 Stainless Steel
• Filter Screen Material: SUS304 Stainless Steel, 316 Stainless Steel
• Seal Material: Nitrile, Fluorine Rubber, EPDM, PTFE
• Inlet and Outlet Diameter: Cylinder inlet and outlet are 1½” PN16 flange, steam jacket inlet and outlet are ½” BSP
• Theoretical Flow Rate: 20m³/H (depending on the material medium)
• Design Temperature: ≤200℃
• Equipped Filter Bag: Standard #1 bag, Standard #2 bag
• Filtration Area: 0.25-0.5㎡
• Cylinder Diameter: Φ219mm
• Installation Height: ≈850mm, ≈1230mm (foot height adjustable)
• Surface Treatment: Glass bead blasting, polishing, anti-corrosion paint spraying

Notes:

This structure includes both #1 and #2 single bag filters.
