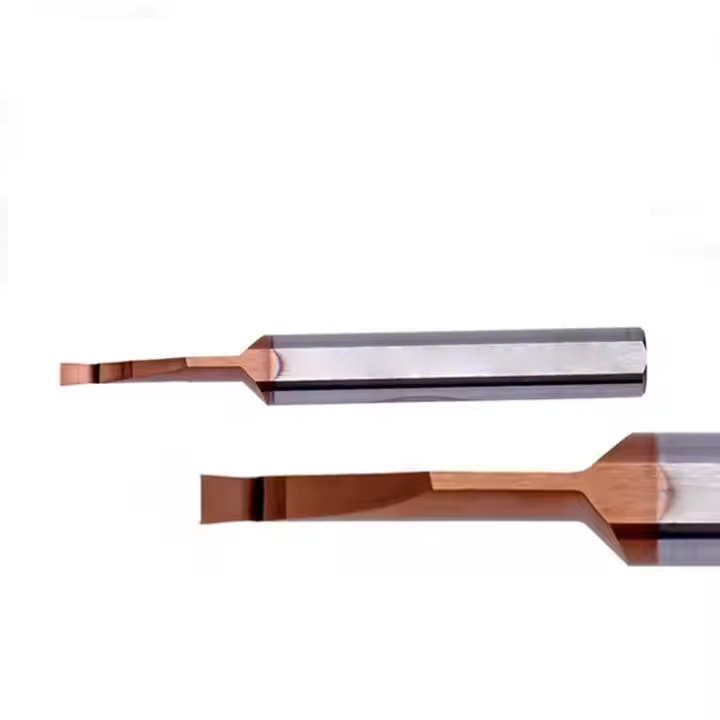

Tungsten Carbide CNC Lathe Grooving Tool / Internal Grooving Boring Bar

Material

Ultra-Fine Grain Tungsten Carbide (YG8/YG6X, etc., customizable)

Coating

TiAlN/TiCN/DLC (Optional) or Uncoated

Blade Width

0.5mm/1mm/2mm/3mm/5mm (Non-standard sizes available)

Total Length

50mm/80mm/100mm/150mm (Customizable)

Cutting Edge Angle

90°/75°/45° (Selectable)

Shank Diameter

Φ6mm/Φ8mm/Φ10mm/Φ12mm, etc.

Groove Type

Internal Undercuts, O-Ring Grooves, Thread Relief Grooves, Face Seal Grooves, etc.

Applicable Materials

Steel/Stainless Steel/Cast Iron/Copper Alloy/Aluminum (Specify hardness range, e.g., HRC≤65)

Max. Cutting Depth

0.1-3mm per side (Model-dependent)

Accuracy

±0.01mm

Surface Finish

Mirror Polished/Standard Grinding (Optional)

Operating Temp.

-20°C to 1200°C (Coating-dependent)

Machine Compatibility

CNC Lathes/Turning-Milling Centers (Specify interface type, e.g., SCCA/BMT)
